Business senario : FB60 AND FB70 validation and subsituation
As per the requirments

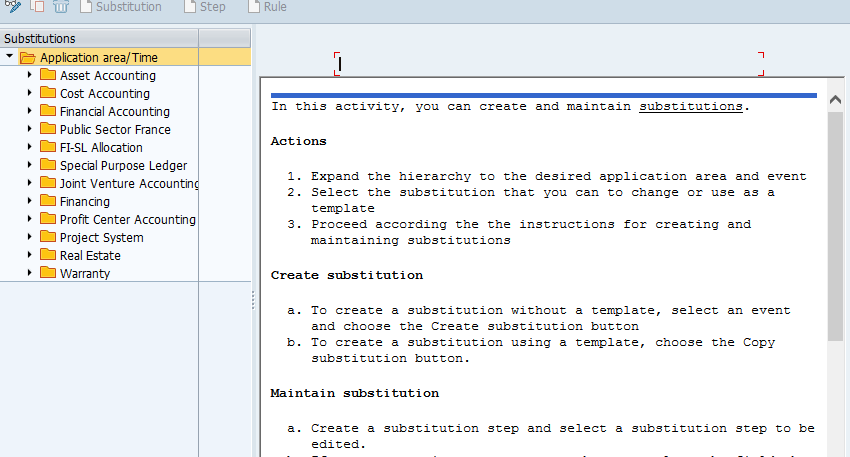

validation GGB0 and subsituation GGB1 with help to two t-code we can do validation of t-code fb60 or fb70 for this purpose you can go to to standared programs .
there are two t-code for input your validation and subsituation OB28 for validation and OBBH for
subsituation
for subsituation you copy the standared program RGGBR000 in customer namespace and register the program in T80D table and register namespace to V_T80D Program
you can change your exit like below
exits-name = 'RK101'.
exits-param = c_exit_param_field.
exits-TITLE = TEXT-prb.
APPEND exits.
And second code like below
FORM upf04.
IF BKPF-bukrs IS INITIAL.
MESSAGE 'PLease enter COMPANY CODE' TYPE 'I'.
ENDIF.
ENDFORM.
and hole code as like below
PROGRAM zrggbs000 .
*---------------------------------------------------------------------*
* Corrections/ repair
* wms092357 070703 Note 638886: template routines to be used for
* workaround to substitute bseg-bewar from bseg-xref1/2
*---------------------------------------------------------------------*
* *
* Substitutions: EXIT-Formpool for Uxxx-Exits *
* *
* This formpool is used by SAP for testing purposes only. *
* *
* Note: If you define a new user exit, you have to enter your *
* user exit in the form routine GET_EXIT_TITLES. *
* *
*---------------------------------------------------------------------*
INCLUDE fgbbgd00. "Standard data types
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!*
* PLEASE INCLUDE THE FOLLOWING "TYPE-POOL" AND "TABLES" COMMANDS *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM *
TYPE-POOLS: gb002. " TO BE INCLUDED IN "wms092357
TABLES: bkpf, " ANY SYSTEM THAT "wms092357
bseg, " HAS 'FI' INSTALLED "wms092357
cobl, "wms092357
csks, "wms092357
anlz, "wms092357
glu1. "wms092357
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!*
*----------------------------------------------------------------------*
* FORM GET_EXIT_TITLES *
*----------------------------------------------------------------------*
* returns name and title of all available standard-exits *
* every exit in this formpool has to be added to this form. *
* You have to specify a parameter type in order to enable the *
* code generation program to determine correctly how to *
* generate the user exit call, i.e. how many and what kind of *
* parameter(s) are used in the user exit. *
* The following parameter types exist: *
* *
* TYPE Description Usage *
* ------------------------------------------------------------ *
* C_EXIT_PARAM_NONE Use no parameter Subst. and Valid. *
* except B_RESULT *
* C_EXIT_PARAM_FIELD Use one field as param. Only Substitution *
* C_EXIT_PARAM_CLASS Use a type as parameter Subst. and Valid *
* *
*----------------------------------------------------------------------*
* --> EXIT_TAB table with exit-name and exit-titles *
* structure: NAME(5), PARAM(1), TITEL(60)
*----------------------------------------------------------------------*
FORM get_exit_titles TABLES etab.
DATA: BEGIN OF exits OCCURS 50,
name(5) TYPE c,
param LIKE c_exit_param_none,
title(60) TYPE c,
END OF exits.
exits-name = 'U100'.
exits-param = c_exit_param_none.
exits-title = text-100. "Cost center from CSKS
APPEND exits.
exits-name = 'U101'.
exits-param = c_exit_param_field.
exits-title = text-101. "Cost center from CSKS
APPEND exits.
* begin of insertion "wms092357
exits-name = 'U200'.
exits-param = c_exit_param_field.
exits-title = text-200. "Cons. transaction type
APPEND exits. "from xref1/2
* end of insertion "wms092357
* DELETE exits WHERE name = 'UFP04'.
exits-name = 'UPF04'.
exits-param = c_exit_param_field.
exits-title = text-prb.
APPEND exits.
exits-name = 'RK101'.
exits-param = c_exit_param_field.
exits-TITLE = TEXT-prb.
APPEND exits.
************************************************************************
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* EXITS-NAME = 'U102'.
* EXITS-PARAM = C_EXIT_PARAM_CLASS.
* EXITS-TITLE = TEXT-102. "Sum is used for the reference.
* APPEND EXITS.
***********************************************************************
** EXIT EXAMPLES FROM PUBLIC SECTOR INDUSTRY SOLUTION
**
** PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINE
** TO ENABLE PUBLIC SECTOR EXAMPLE SUBSTITUTION EXITS
***********************************************************************
INCLUDE rggbs_ps_titles.
REFRESH etab.
LOOP AT exits.
etab = exits.
APPEND etab.
ENDLOOP.
ENDFORM. "GET_EXIT_TITLES
* eject
*---------------------------------------------------------------------*
* FORM U100 *
*---------------------------------------------------------------------*
* Reads the cost-center from the CSKS table . *
*---------------------------------------------------------------------*
FORM u100.
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* SELECT * FROM CSKS
* WHERE KOSTL EQ COBL-KOSTL
* AND KOKRS EQ COBL-KOKRS.
* IF CSKS-DATBI >= SY-DATUM AND
* CSKS-DATAB <= SY-DATUM.
*
* MOVE CSKS-ABTEI TO COBL-KOSTL.
*
* ENDIF.
* ENDSELECT.
ENDFORM. "U100
* eject
*---------------------------------------------------------------------*
* FORM U101 *
*---------------------------------------------------------------------*
* Reads the cost-center from the CSKS table for accounting *
* area '0001'. *
* This exit uses a parameter for the cost_center so it can *
* be used irrespective of the table used in the callup point. *
*---------------------------------------------------------------------*
FORM u101 USING cost_center.
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* SELECT * FROM CSKS
* WHERE KOSTL EQ COST_CENTER
* AND KOKRS EQ '0001'.
* IF CSKS-DATBI >= SY-DATUM AND
* CSKS-DATAB <= SY-DATUM.
*
* MOVE CSKS-ABTEI TO COST_CENTER .
*
* ENDIF.
* ENDSELECT.
ENDFORM. "U101
* eject
*---------------------------------------------------------------------*
* FORM U102 *
*---------------------------------------------------------------------*
* Inserts the sum of the posting into the reference field. *
* This exit can be used in FI for the complete document. *
* The complete data is passed in one parameter. *
*---------------------------------------------------------------------*
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
*FORM u102 USING bool_data TYPE gb002_015.
*DATA: SUM(10) TYPE C.
*
* LOOP AT BOOL_DATA-BSEG INTO BSEG
* WHERE SHKZG = 'S'.
* BSEG-ZUONR = 'Test'.
* MODIFY BOOL_DATA-BSEG FROM BSEG.
* ADD BSEG-DMBTR TO SUM.
* ENDLOOP.
*
* BKPF-XBLNR = TEXT-001.
* REPLACE '&' WITH SUM INTO BKPF-XBLNR.
*
*ENDFORM.
***********************************************************************
** EXIT EXAMPLES FROM PUBLIC SECTOR INDUSTRY SOLUTION
**
** PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINE
** TO ENABLE PUBLIC SECTOR EXAMPLE SUBSTITUTION EXITS
***********************************************************************
*INCLUDE rggbs_ps_forms.
*eject
* begin of insertion "wms092357
*&---------------------------------------------------------------------*
*& Form u200
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM u200 USING e_rmvct TYPE bseg-bewar.
PERFORM xref_to_rmvct USING bkpf bseg 1 CHANGING e_rmvct.
ENDFORM. "u200
*&---------------------------------------------------------------------*
*& Form xref_to_rmvct
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM xref_to_rmvct
USING is_bkpf TYPE bkpf
is_bseg TYPE bseg
i_xref_field TYPE i
CHANGING c_rmvct TYPE rmvct.
DATA l_msgv TYPE symsgv.
STATICS st_rmvct TYPE HASHED TABLE OF rmvct WITH UNIQUE DEFAULT KEY.
* either bseg-xref1 or bseg-xref2 must be used as source...
IF i_xref_field <> 1 AND i_xref_field <> 2.
MESSAGE x000(gk) WITH 'UNEXPECTED VALUE I_XREF_FIELD ='
i_xref_field '(MUST BE = 1 OR = 2)' ''.
ENDIF.
IF st_rmvct IS INITIAL.
SELECT trtyp FROM t856 INTO TABLE st_rmvct.
ENDIF.
IF i_xref_field = 1.
c_rmvct = is_bseg-xref1.
ELSE.
c_rmvct = is_bseg-xref2.
ENDIF.
IF c_rmvct IS INITIAL.
WRITE i_xref_field TO l_msgv LEFT-JUSTIFIED.
CONCATENATE text-m00 l_msgv INTO l_msgv SEPARATED BY space.
* cons. transaction type is not specified => send an error message...
MESSAGE e123(g3) WITH l_msgv.
* Bitte geben Sie im Feld &1 eine Konsolidierungsbewegungsart an
ENDIF.
* c_rmvct <> initial...
READ TABLE st_rmvct TRANSPORTING NO FIELDS FROM c_rmvct.
CHECK NOT sy-subrc IS INITIAL.
* cons. transaction type does not exist => send error message...
WRITE i_xref_field TO l_msgv LEFT-JUSTIFIED.
CONCATENATE text-m00 l_msgv INTO l_msgv SEPARATED BY space.
MESSAGE e124(g3) WITH c_rmvct l_msgv.
* KonsBewegungsart &1 ist ungültig (bitte Eingabe im Feld &2 korrigieren
ENDFORM. "xref_to_rmvct
* end of insertion "wms092357
FORM upf04.
IF BKPF-bukrs IS INITIAL.
MESSAGE 'PLease enter COMPANY CODE' TYPE 'I'.
ENDIF.
ENDFORM.
now you can maintace this program standared v_t80d
NOW Go to standared t-code GGB0 and made validation
you can change your exit like below
exits-name = 'RK101'.
exits-param = c_exit_param_field.
exits-TITLE = TEXT-prb.
APPEND exits.
And second code like below
FORM upf04.
IF BKPF-bukrs IS INITIAL.
MESSAGE 'PLease enter COMPANY CODE' TYPE 'I'.
ENDIF.
ENDFORM.
and hole code as like below
PROGRAM zrggbs000 .
*---------------------------------------------------------------------*
* Corrections/ repair
* wms092357 070703 Note 638886: template routines to be used for
* workaround to substitute bseg-bewar from bseg-xref1/2
*---------------------------------------------------------------------*
* *
* Substitutions: EXIT-Formpool for Uxxx-Exits *
* *
* This formpool is used by SAP for testing purposes only. *
* *
* Note: If you define a new user exit, you have to enter your *
* user exit in the form routine GET_EXIT_TITLES. *
* *
*---------------------------------------------------------------------*
INCLUDE fgbbgd00. "Standard data types
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!*
* PLEASE INCLUDE THE FOLLOWING "TYPE-POOL" AND "TABLES" COMMANDS *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM *
TYPE-POOLS: gb002. " TO BE INCLUDED IN "wms092357
TABLES: bkpf, " ANY SYSTEM THAT "wms092357
bseg, " HAS 'FI' INSTALLED "wms092357
cobl, "wms092357
csks, "wms092357
anlz, "wms092357
glu1. "wms092357
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!*
*----------------------------------------------------------------------*
* FORM GET_EXIT_TITLES *
*----------------------------------------------------------------------*
* returns name and title of all available standard-exits *
* every exit in this formpool has to be added to this form. *
* You have to specify a parameter type in order to enable the *
* code generation program to determine correctly how to *
* generate the user exit call, i.e. how many and what kind of *
* parameter(s) are used in the user exit. *
* The following parameter types exist: *
* *
* TYPE Description Usage *
* ------------------------------------------------------------ *
* C_EXIT_PARAM_NONE Use no parameter Subst. and Valid. *
* except B_RESULT *
* C_EXIT_PARAM_FIELD Use one field as param. Only Substitution *
* C_EXIT_PARAM_CLASS Use a type as parameter Subst. and Valid *
* *
*----------------------------------------------------------------------*
* --> EXIT_TAB table with exit-name and exit-titles *
* structure: NAME(5), PARAM(1), TITEL(60)
*----------------------------------------------------------------------*
FORM get_exit_titles TABLES etab.
DATA: BEGIN OF exits OCCURS 50,
name(5) TYPE c,
param LIKE c_exit_param_none,
title(60) TYPE c,
END OF exits.
exits-name = 'U100'.
exits-param = c_exit_param_none.
exits-title = text-100. "Cost center from CSKS
APPEND exits.
exits-name = 'U101'.
exits-param = c_exit_param_field.
exits-title = text-101. "Cost center from CSKS
APPEND exits.
* begin of insertion "wms092357
exits-name = 'U200'.
exits-param = c_exit_param_field.
exits-title = text-200. "Cons. transaction type
APPEND exits. "from xref1/2
* end of insertion "wms092357
* DELETE exits WHERE name = 'UFP04'.
exits-name = 'UPF04'.
exits-param = c_exit_param_field.
exits-title = text-prb.
APPEND exits.
exits-name = 'RK101'.
exits-param = c_exit_param_field.
exits-TITLE = TEXT-prb.
APPEND exits.
************************************************************************
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* EXITS-NAME = 'U102'.
* EXITS-PARAM = C_EXIT_PARAM_CLASS.
* EXITS-TITLE = TEXT-102. "Sum is used for the reference.
* APPEND EXITS.
***********************************************************************
** EXIT EXAMPLES FROM PUBLIC SECTOR INDUSTRY SOLUTION
**
** PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINE
** TO ENABLE PUBLIC SECTOR EXAMPLE SUBSTITUTION EXITS
***********************************************************************
INCLUDE rggbs_ps_titles.
REFRESH etab.
LOOP AT exits.
etab = exits.
APPEND etab.
ENDLOOP.
ENDFORM. "GET_EXIT_TITLES
* eject
*---------------------------------------------------------------------*
* FORM U100 *
*---------------------------------------------------------------------*
* Reads the cost-center from the CSKS table . *
*---------------------------------------------------------------------*
FORM u100.
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* SELECT * FROM CSKS
* WHERE KOSTL EQ COBL-KOSTL
* AND KOKRS EQ COBL-KOKRS.
* IF CSKS-DATBI >= SY-DATUM AND
* CSKS-DATAB <= SY-DATUM.
*
* MOVE CSKS-ABTEI TO COBL-KOSTL.
*
* ENDIF.
* ENDSELECT.
ENDFORM. "U100
* eject
*---------------------------------------------------------------------*
* FORM U101 *
*---------------------------------------------------------------------*
* Reads the cost-center from the CSKS table for accounting *
* area '0001'. *
* This exit uses a parameter for the cost_center so it can *
* be used irrespective of the table used in the callup point. *
*---------------------------------------------------------------------*
FORM u101 USING cost_center.
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
* SELECT * FROM CSKS
* WHERE KOSTL EQ COST_CENTER
* AND KOKRS EQ '0001'.
* IF CSKS-DATBI >= SY-DATUM AND
* CSKS-DATAB <= SY-DATUM.
*
* MOVE CSKS-ABTEI TO COST_CENTER .
*
* ENDIF.
* ENDSELECT.
ENDFORM. "U101
* eject
*---------------------------------------------------------------------*
* FORM U102 *
*---------------------------------------------------------------------*
* Inserts the sum of the posting into the reference field. *
* This exit can be used in FI for the complete document. *
* The complete data is passed in one parameter. *
*---------------------------------------------------------------------*
*!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
* PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINES *
* IF THE ACCOUNTING MODULE IS INSTALLED IN YOUR SYSTEM: *
*FORM u102 USING bool_data TYPE gb002_015.
*DATA: SUM(10) TYPE C.
*
* LOOP AT BOOL_DATA-BSEG INTO BSEG
* WHERE SHKZG = 'S'.
* BSEG-ZUONR = 'Test'.
* MODIFY BOOL_DATA-BSEG FROM BSEG.
* ADD BSEG-DMBTR TO SUM.
* ENDLOOP.
*
* BKPF-XBLNR = TEXT-001.
* REPLACE '&' WITH SUM INTO BKPF-XBLNR.
*
*ENDFORM.
***********************************************************************
** EXIT EXAMPLES FROM PUBLIC SECTOR INDUSTRY SOLUTION
**
** PLEASE DELETE THE FIRST '*' FORM THE BEGINING OF THE FOLLOWING LINE
** TO ENABLE PUBLIC SECTOR EXAMPLE SUBSTITUTION EXITS
***********************************************************************
*INCLUDE rggbs_ps_forms.
*eject
* begin of insertion "wms092357
*&---------------------------------------------------------------------*
*& Form u200
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM u200 USING e_rmvct TYPE bseg-bewar.
PERFORM xref_to_rmvct USING bkpf bseg 1 CHANGING e_rmvct.
ENDFORM. "u200
*&---------------------------------------------------------------------*
*& Form xref_to_rmvct
*&---------------------------------------------------------------------*
* text
*----------------------------------------------------------------------*
FORM xref_to_rmvct
USING is_bkpf TYPE bkpf
is_bseg TYPE bseg
i_xref_field TYPE i
CHANGING c_rmvct TYPE rmvct.
DATA l_msgv TYPE symsgv.
STATICS st_rmvct TYPE HASHED TABLE OF rmvct WITH UNIQUE DEFAULT KEY.
* either bseg-xref1 or bseg-xref2 must be used as source...
IF i_xref_field <> 1 AND i_xref_field <> 2.
MESSAGE x000(gk) WITH 'UNEXPECTED VALUE I_XREF_FIELD ='
i_xref_field '(MUST BE = 1 OR = 2)' ''.
ENDIF.
IF st_rmvct IS INITIAL.
SELECT trtyp FROM t856 INTO TABLE st_rmvct.
ENDIF.
IF i_xref_field = 1.
c_rmvct = is_bseg-xref1.
ELSE.
c_rmvct = is_bseg-xref2.
ENDIF.
IF c_rmvct IS INITIAL.
WRITE i_xref_field TO l_msgv LEFT-JUSTIFIED.
CONCATENATE text-m00 l_msgv INTO l_msgv SEPARATED BY space.
* cons. transaction type is not specified => send an error message...
MESSAGE e123(g3) WITH l_msgv.
* Bitte geben Sie im Feld &1 eine Konsolidierungsbewegungsart an
ENDIF.
* c_rmvct <> initial...
READ TABLE st_rmvct TRANSPORTING NO FIELDS FROM c_rmvct.
CHECK NOT sy-subrc IS INITIAL.
* cons. transaction type does not exist => send error message...
WRITE i_xref_field TO l_msgv LEFT-JUSTIFIED.
CONCATENATE text-m00 l_msgv INTO l_msgv SEPARATED BY space.
MESSAGE e124(g3) WITH c_rmvct l_msgv.
* KonsBewegungsart &1 ist ungültig (bitte Eingabe im Feld &2 korrigieren
ENDFORM. "xref_to_rmvct
* end of insertion "wms092357
FORM upf04.
IF BKPF-bukrs IS INITIAL.
MESSAGE 'PLease enter COMPANY CODE' TYPE 'I'.
ENDIF.
ENDFORM.
now you can maintace this program standared v_t80d
thne maintance you standard programs here only
Here you can write simple code like below
and now you can financial accounting and go to header level and maintance the code and make validation as per the user requirments so go the docoment header level and matance the code
and go to check and write code like below
and messages you can write code like below
let this blog may help you to doing validation and subsituation but you can not get hole becasue this is not eassy you can write profer code and get may you get some idea to how to develop the code and and how to get the requirments may this you help little and give me more idea next time i write some better blogs thanks in advance to spending time to reaading this blogs
Comments
Post a Comment
